How to Connect Fogstar Lithium Batteries to Voltacon Off Grid Inverters
Created On
Last Updated On
byadmin
The Fogstar battery has a BMS that communicates with the Voltacon off-grid inverters . The battery is used by customers who installed Conversol 8kW MAX-II and Ultra MAX 11Kw.
That also covers the entire range of inverters from 8kw to 12kW, since the protocol is PYL (Pylontech) in the Menu 5 of the inverter.

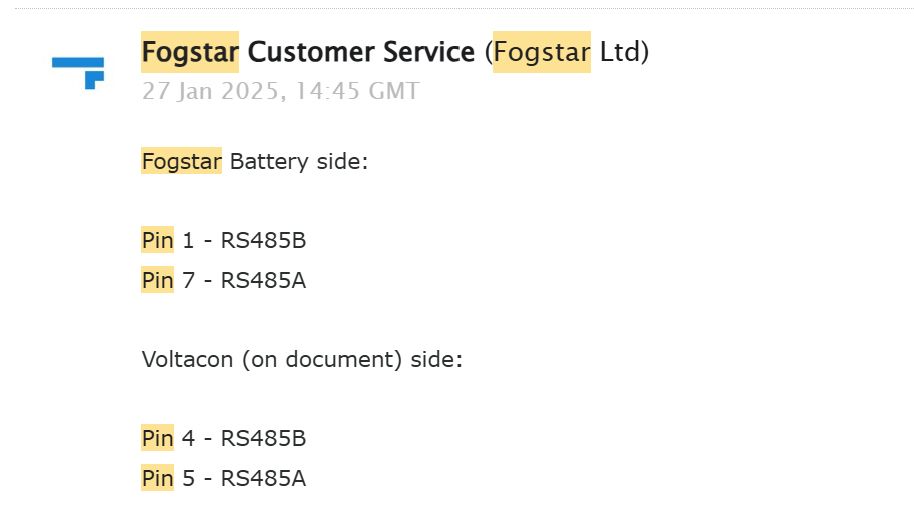

The communication between the Fogstar batteries and the inverter is made with an ethernet RJ45 cable with the following PIN layout:

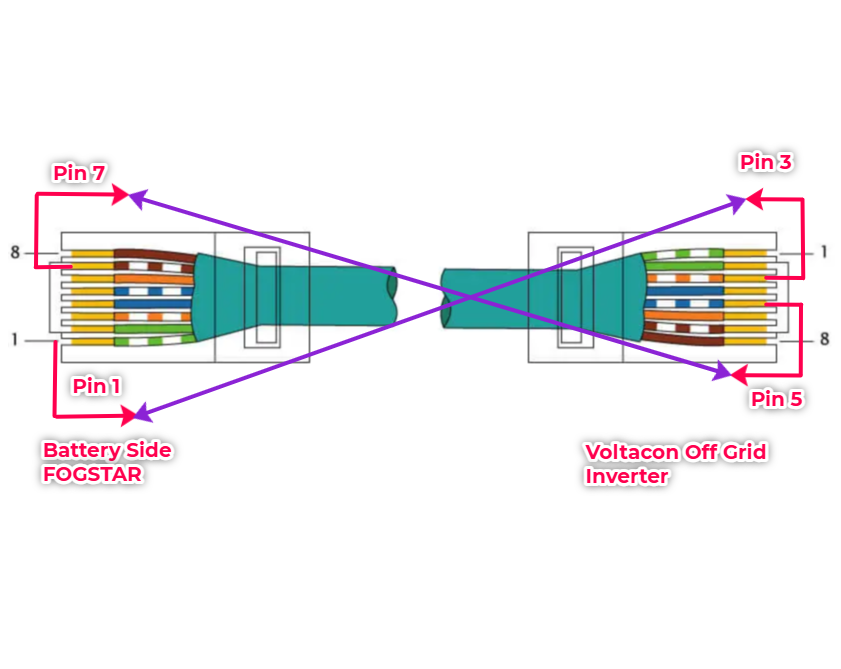

Pin arrangement for communication between inverter and Fogstar lithium batteries
